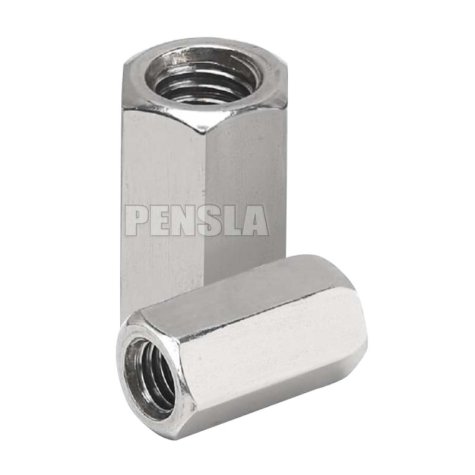

| Model | FA-5 |
| Product | Tie Rod Connectors (Weldable) |
| Thread Size | 15/17 MM |
| Material | Mild Carbon Steel |
| Loading Capacity | Up to 150 kN |
| Finish | Self Finish & Electro Galvanized |
| Length | 50, 70, 90, 100, 105 & 110 MM |
| Model | FA-1 |
| Thread Size | 15/17 MM, 2.5 TPI, 10 MM Pitch (French Thread) |
| Material | Mild Carbon Steel, EN8/High Carbon Steel (C-45) |
| Loading Capacity | Up to 90 kN (DIN 18216) |
| Breaking Load | Up to 190 kN |
| Finish | Self Finish & Electro Galvanized |
| Lengths | 1.0, 1.2, 1.5, 2.0, 3.0, 4.0, 5.8 & 6.0 Metres |
| Also Available In | 18, 20 & 24 MM |
| English Thread | 6.35 MM Pitch Also Available |
